Spot UV Printing Specialty

Spot UV Printing (also known as Local UV coating) is a post-press surface finishing process. It applies a transparent UV varnish only to designated printed areas, which is instantly cured by ultraviolet light to form a high-gloss, embossed or textured transparent coating. This technique highlights key graphics and text, upgrades texture and creates strong visual contrast.

1. Core Principle

1) Selective Coating: Use screen printing plates or flexographic plates to coat transparent UV varnish (liquid resin) precisely on customized logos, patterns and text areas.

2) UV Curing: Right after coating, UV lamp irradiation cures the varnish within 0.1 to 0.5 seconds through chemical cross-linking, forming a hard, transparent and scratch-resistant film.

3) Contrast Effect: Obvious differences in gloss (glossy/matte), touch (smooth/textured) and structure (flat/embossed) are created on matte laminated or ordinary printed substrates.

2. Main Process Types & Effects

· Gloss Spot UV: The most common type, with mirror-like high gloss to highlight logos and headings.

· Matte Spot UV: Delicate foggy finish for a low-end premium look.

· Frosted UV: Fine sand surface with a unique tactile feeling.

· Heavy-Duty 3D UV: Thick coating (10–30μm) with obvious raised embossed texture for 3D touch.

· Special Effects UV: Rainbow UV, refraction UV, wrinkle finish, ice crystal finish, crystal texture and more.

·

3. Standard Production Workflow

1) Prepress File Making: Prepare the base printing artwork and an independent spot UV special color layer to mark UV coating areas. The registration error shall be controlled within 0.1mm.

2) Base Printing: Complete CMYK or spot color printing; matte lamination is mostly adopted for stronger contrast, accounting for 80% of finished products.

3) UV Plate Making: Screen plates for thick coating and 3D effects; flexographic plates for high-precision and on-line mass production.

4) Local Varnish Coating: Apply UV varnish accurately by professional spot UV coating machines or screen printing machines.

5) UV Curing: Adopt high-pressure mercury lamps or LED-UV lamps for instant drying, allowing direct stacking of finished products.

6) Final Inspection: Check registration accuracy, gloss performance, coating adhesion, missing coating and dirt spots.

4. Comparison of Three Common Implementation Methods

5. Materials & Equipment

· Substrates: Coated paper, ivory board, matte art paper, laminated paper, PVC, PET and other synthetic materials.

· UV Varnish: Glossy, matte, frosted, elastic and scratch-resistant types.

· Equipment: Off-line coating machines, on-line UV units, screen printing machines, LED-UV curing systems.

6. Core Advantages

1) Visual Highlighting: Focus viewers’ attention on key information through strong gloss contrast.

2) Premium Texture: Upgrade product grade with rich visual and tactile experience.

3) Surface Protection: Excellent performance in scratch resistance, water resistance, fingerprint resistance and folding resistance.

4) High Efficiency: Instant curing, fast turnaround and no delay to production schedules.

5) Eco-friendly: Solvent-free, low VOC emissions, compliant with food packaging environmental standards.

7. Typical Applications

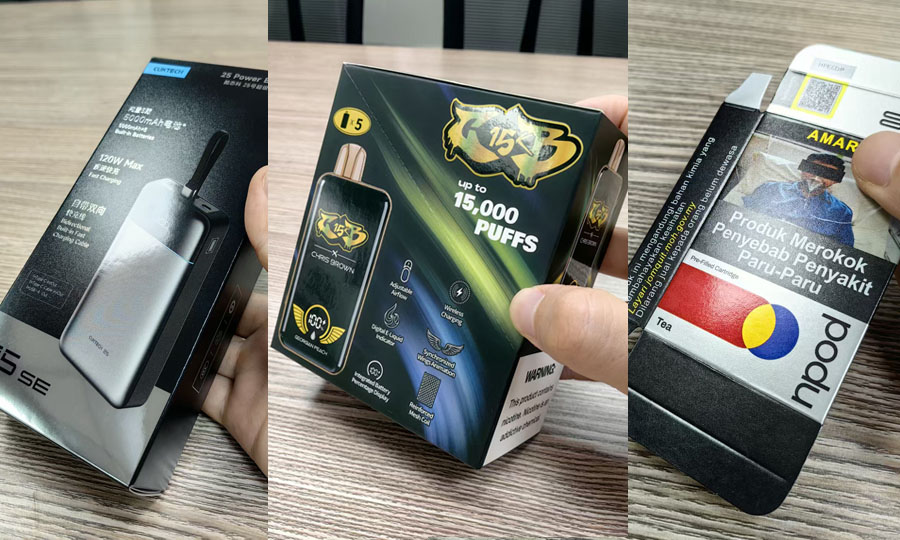

· Packaging: Cosmetics, tobacco & alcohol, tea, 3C electronics and luxury gift boxes for logo and core pattern highlighting.

· Publishing: Book covers, hardcover books, picture albums and magazine headings.

· Commercial Prints: Business cards, greeting cards, invitation cards and certificates.

· Labels: Wine labels, daily chemical product labels and high-end hang tags.

8. Design & Production Notes

· Recommended Background: The best contrast is achieved by glossy spot UV on dark or matte backgrounds.

· Registration Control: Strict alignment between UV areas and base artwork is required; fine lines and small fonts are prone to misalignment.

· Coating Thickness: Thick varnish brings stronger 3D effect but risks sagging and slow drying; thin coating ensures better stability.

· Lamination Matching: Matte lamination + glossy spot UV is the classic combination; glossy lamination weakens UV contrast.

· Cost: Higher than ordinary printing, but more cost-effective than hot stamping and embossing.

9. Spot UV vs Full UV vs Hot Stamping

· Spot UV: Selective gloss effect, 3D texture, transparent finish and moderate cost.

· Full UV: Overall surface glazing, mainly for protection without visual contrast.

· Hot Stamping: Metallic opaque effect with high-grade texture but complex craftsmanship and higher cost.

Summary

Spot UV printing is a cost-effective premium post-press process. With transparent coating, high gloss, 3D texture and wear resistance, it delivers dual visual and tactile upgrades for printed products, and has become a standard finishing technology for high-end packaging and premium printed materials.
